Reliable Insulated Panel Manufacturer
Classification & Specifications of Insulated Panel
Facing
thickness
Thickness Available:
30mm 40mm 50mm 60mm 80mm100mm120mm
Key Aspects of Insulated Panel
Fast To Construct
The Insulated Panel , are built from the factory, so they require minimal time to install on site. These insulated panel are also extremely simple to install, thus reducing the time.
Insulation – Heat Proof
This thermal material, constructed from top-quality Rigid Polyurethane Foam (PUF), is considered one of the most effective high-performance insulation materials. The superior quality of our Insulated Panels enables significant savings in heating and cooling expenses.
Strong Load Bearing
The Insulated Panels we offer can withstand compressive loads of up to 1 ton per square foot. Even across long spans, they can bear significant live and dead loads. Thanks to their inherent strength, these panels require minimal or no additional support structure.
Edge Protect Technology
Weather Shield For Ultra Long Life
The Insulated Panels come with a Weather Shield coating, an extra-thick layer of paint that provides an added level of protection from the elements. The UV-resistant Weather Shield coat ensures that the panels won’t become damaged or brittle when exposed to sunlight, making them highly durable.
Technical Features of Insulated Panels
| Panel thickness available | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel total width | 1070mm |
| Panel effective width | 1000mm |
| Panel length available | 1000mm-15000mm |
| Density | 40± 2kg/m3 |
| Thermal conductivity | 0.024-0.03 W/m |
| Temperature range | -40+800C |
| CFC / HFC | Free from CFC / HFC |
| Type of foam | B1, B2, B3, PIR |
| Heat transfer co-efficient | -0.022W/M2*k |
| Pressure | 0.10Mpa |
| Top coat | 5 + 15 micron |
| Back coat | 5 + 5 micron |
| 500h (ECCA TB) | 100 h (ASTM D 2247) |
CLASSIFICATION BASED ON THICKNESS OF PANEL
50mm puf panel
50mm panels are the most ideal thickness of puf sheet. They offer the best mix of insulation, strength and cost. These are a good choice for all constructions like roof top room, hospital floor, school classrooms, roof top restaurant construction, penthouse etc.
30mm puf panel
30mm panels are the most economical type of panel. They are a good choice as an alternative for metal roofing sheets.
65mm puf panel
65mm panels are a good choice for applications where high levels of insulation are required and where extreme cold or heat is a concern, such as refrigerated warehouses and cold storage facilities
40mm puf panels
40mm panels are thicker than 30mm panels and offer more insulation and strength. They are a good choice for applications where budget is is important factor, such as servant classrooms, staff quarters, temporary offices etc.
105mm puf panel
105mm panels are the thickest type of panel available. They offer the highest levels of insulation and are a good choice for applications where extreme cold or heat is a major concern, such as sub-zero refrigerator, cryogenic chambers and blast freezers.
All things you need to know
All About Insulated Panel: Varieties, Cost, Attributes, and More

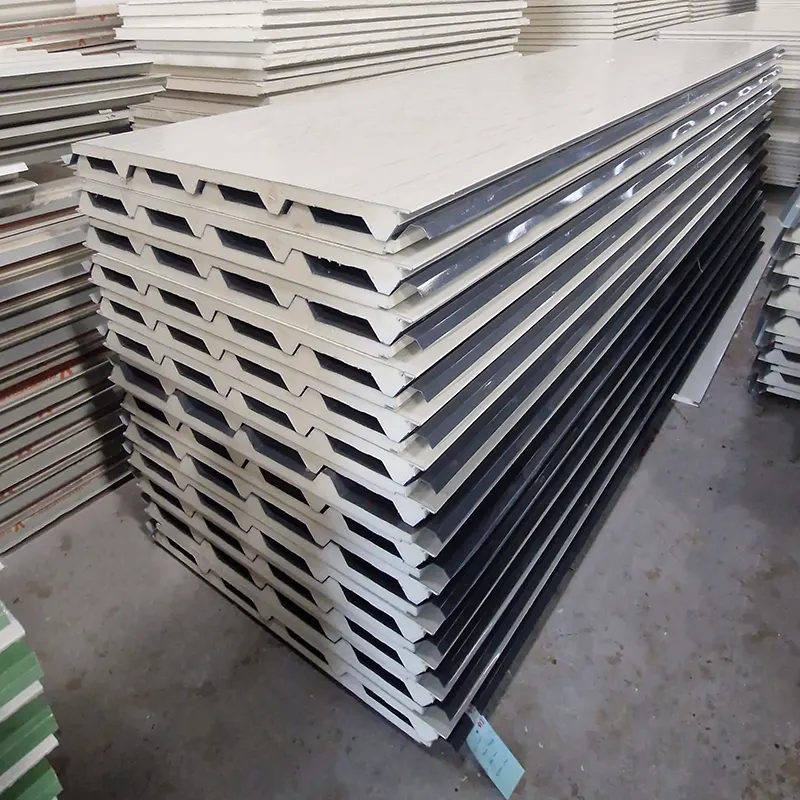

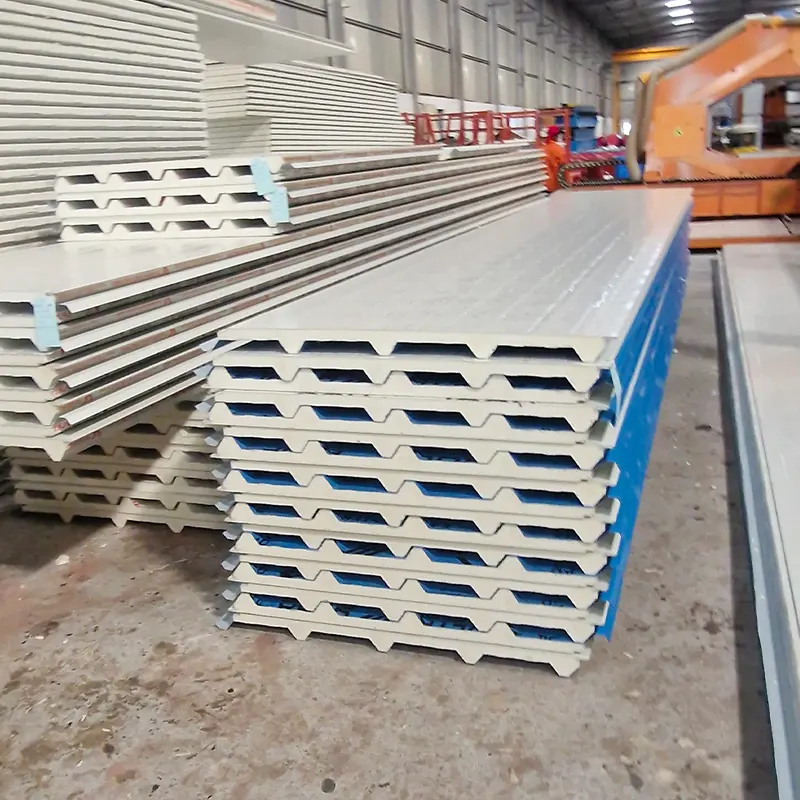

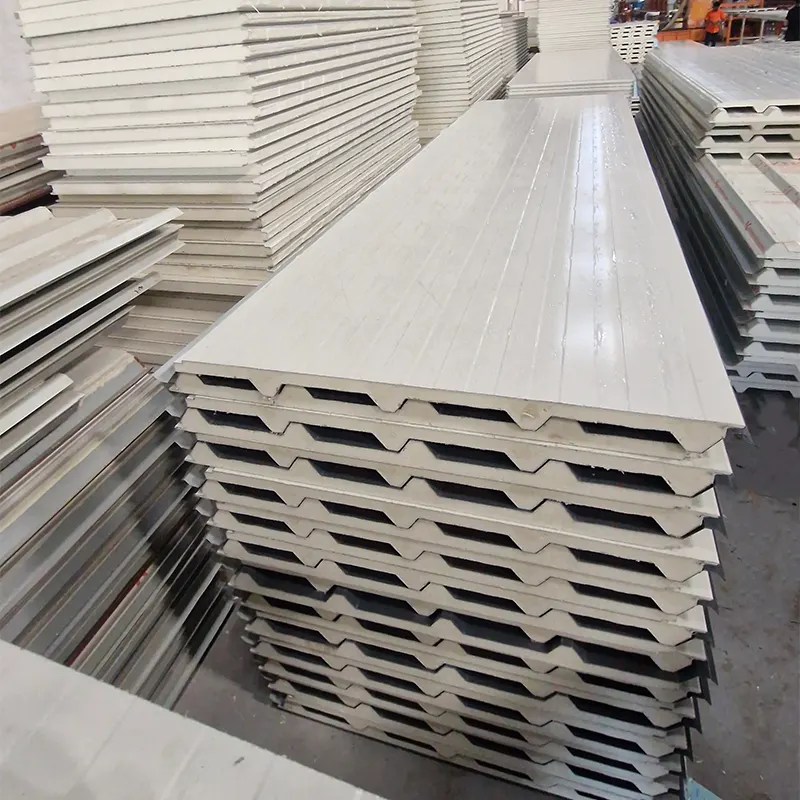

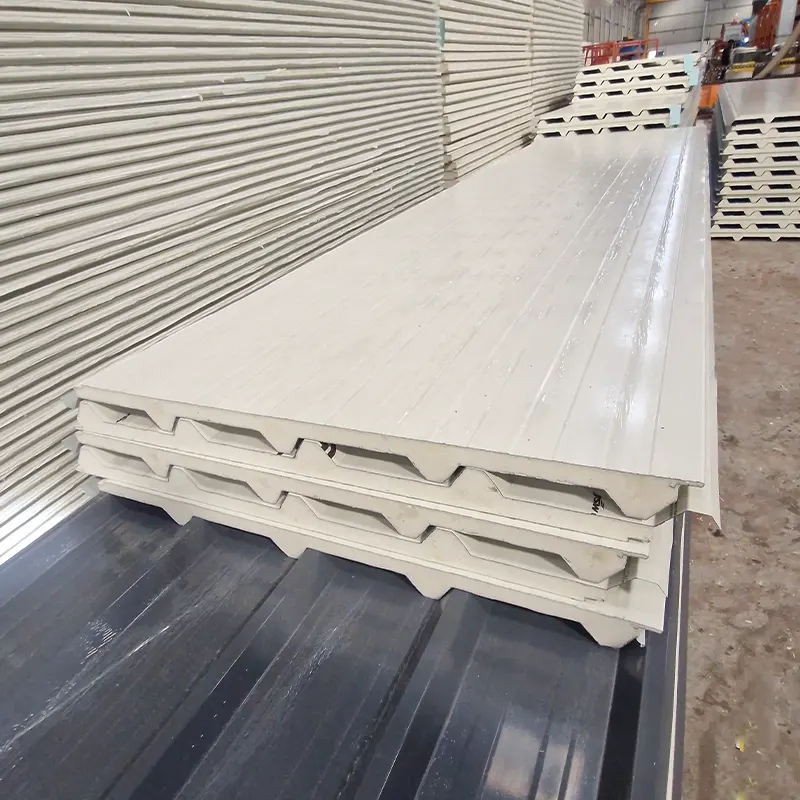

Insulated Roof Panels
Built with the highest quality materials, our Insulated Panels are designed to endure the most demanding conditions. With a variety of finishes and colors available, they seamlessly integrate into any office or home design. These panels are perfect for warehouses, PEB industries, tiny rooms, and farmhouses, combining style and durability. Manufactured using a Continuous Line Production Method, they feature 5 corrugations, a 250mm pitch, and exterior baby ribs for added strength.
Weather Endurance
Withstand harsh climates effortlessly.
Energy Efficiency
Maintain optimal temperatures, saving on energy bills.
Versatile Application
Ideal for diverse spaces, from warehouses to residential homes.
Get a quote for your project and unlock unbeatable solutions tailored just for you

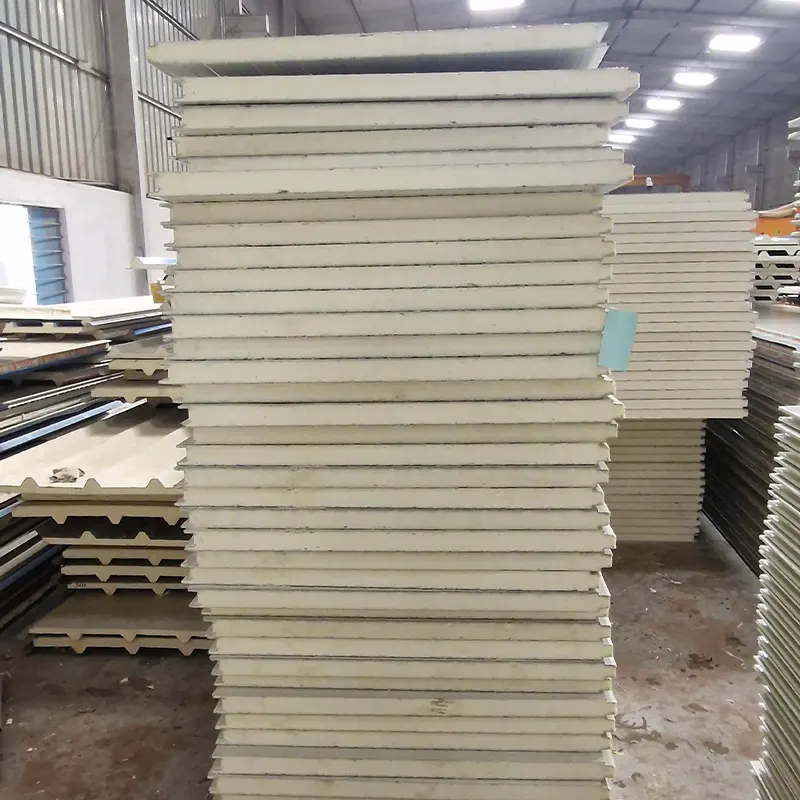

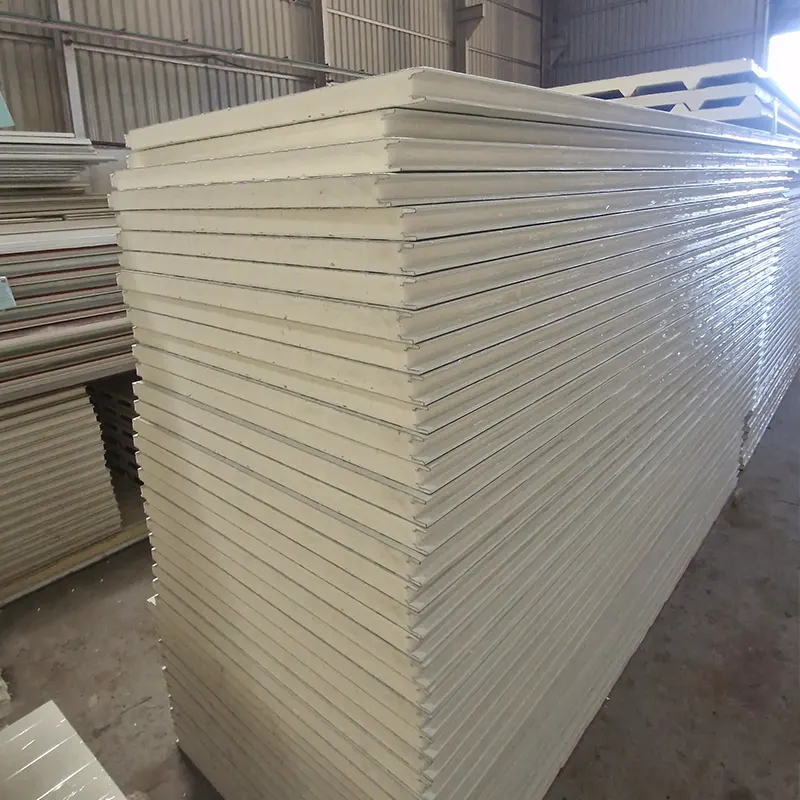

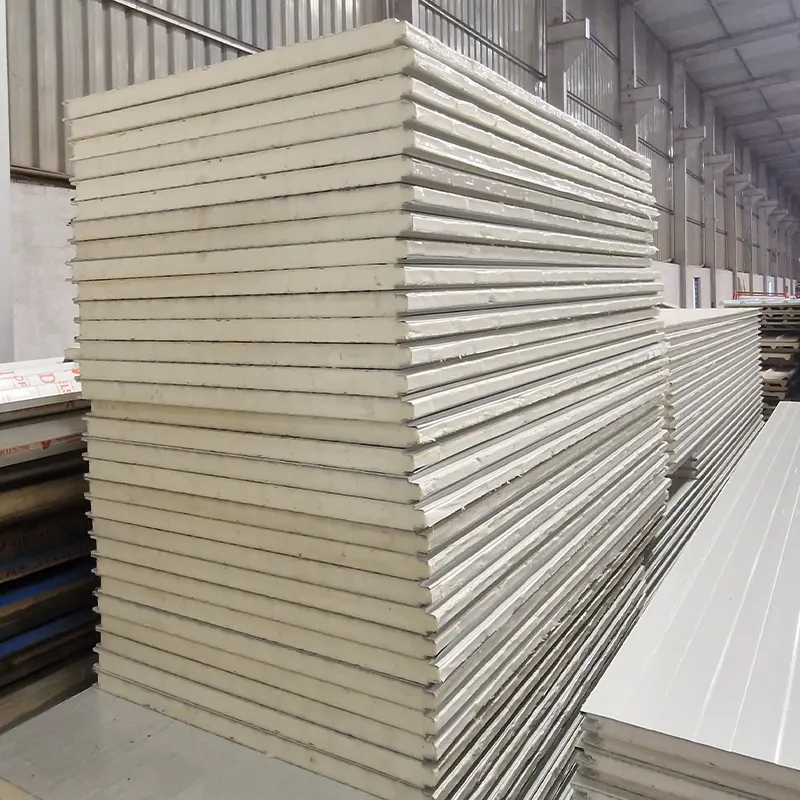

Insulated Wall Panels
Insulated Panels offer a cost-effective alternative to conventional partitions and walls. Much more affordable than masonry and aluminum options, these prefabricated flexible walls are ideal for both commercial and residential applications. The lightweight, high-performance polyurethane foam base sandwiched between metal sheets provides toughness, durability, and easy installation. Available in a variety of thicknesses and colors, including the innovative Wood Finish Texture color option, these insulation panels enhance both exterior walls and interior partitions.
Cost-Effective
40% to 50% cheaper than conventional walls/partitions.
Easy Installation
Lightweight design for effortless setup.
Versatile Design
Options for various thicknesses, colors, and textures.
Get a quote for your project and unlock unbeatable solutions tailored just for you.
